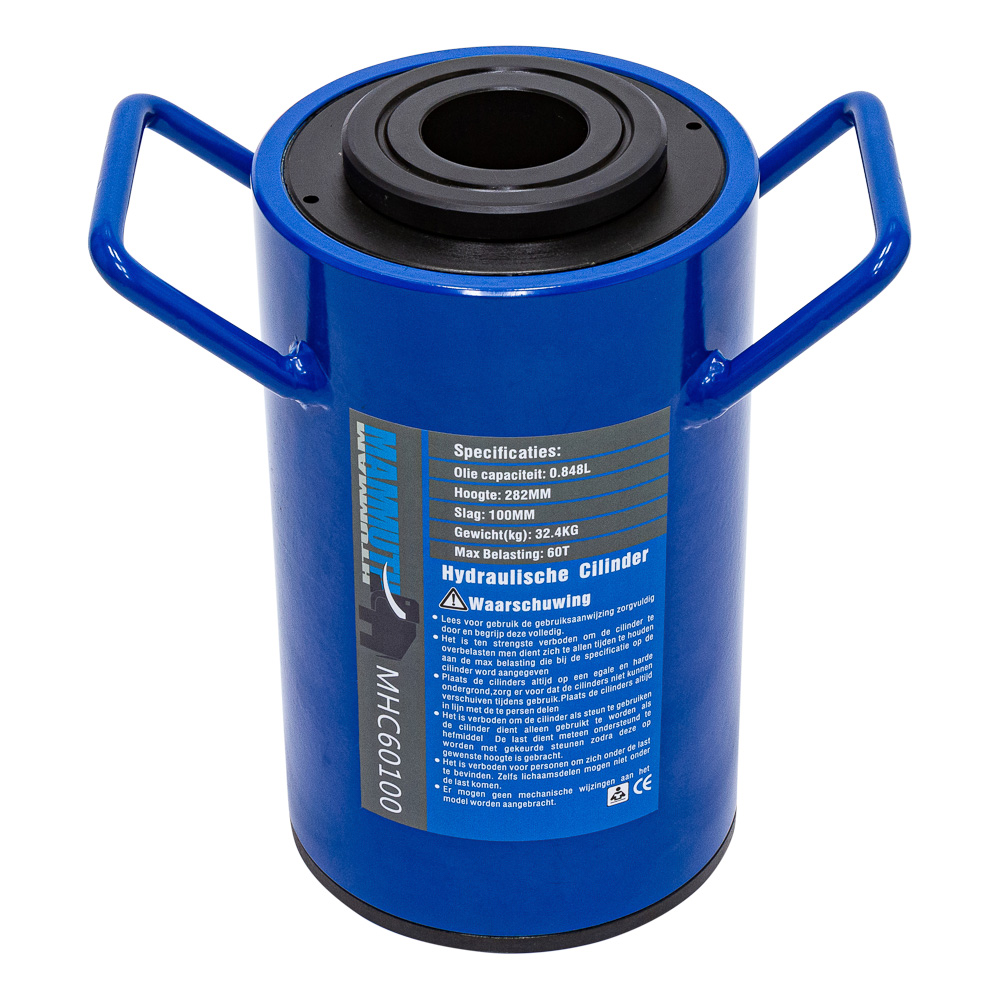

Hollow cylinder 60 ton stroke 100mm

[MHC60100] Hollow cylinder 60 ton stroke 100mm

€ 605.00 € 605.00

  • Capacity
  • Stroke
  • Pressure max.
  • Oil capacity
  • Outside diameter
  • Effective pressure area
  • Bore diameter
  • Principal axis diameter
  • Plunger diameter
  • Oil supply hole thread (Rc)
  • Top cap height
Add to cart
Add to wishlist
Contact Us
Capacity: 60 Ton
Stroke: 100 mm
Pressure max.: 700 Bar
Oil capacity: 0.848 L
Outside diameter: 187 mm
Effective pressure area: 84.7 cm²
Bore diameter: 135 mm
Principal axis diameter: 100 mm
Plunger diameter: 54 mm
Oil supply hole thread (Rc): 3/8"
Top cap height: 12 mm

Internal Reference: MHC60100
