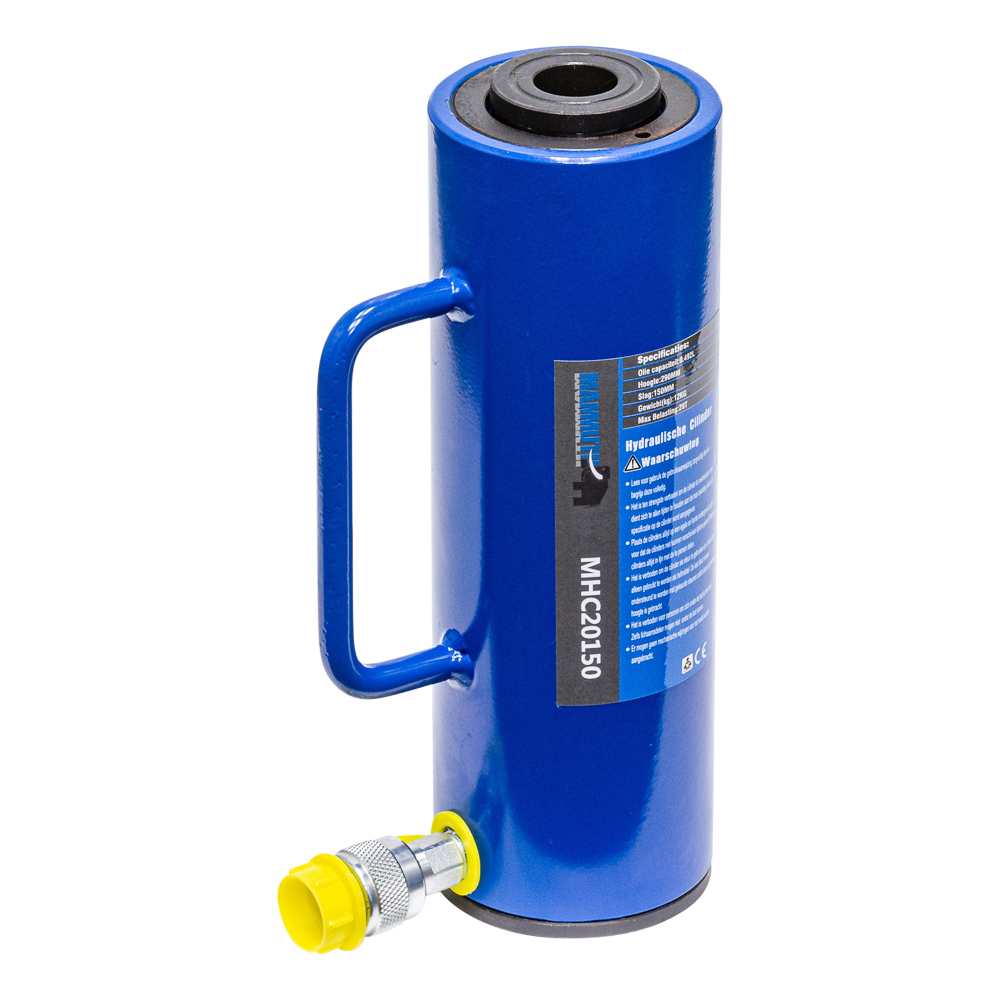

Hollow cylinder 20 ton stroke 150mm

[MHC20150] Hollow cylinder 20 ton stroke 150mm

€ 302.50 € 302.50

  • Capacity
  • Stroke
  • Pressure max.
  • Oil capacity
  • Outside diameter
  • Effective pressure area
  • Bore diameter
  • Principal axis diameter
  • Plunger diameter
  • Oil supply hole thread (Rc)
  • Top cap height
  • Packaging
Add to cart
Add to wishlist
Contact Us
Capacity: 20 Ton
Stroke: 150 mm
Pressure max.: 700 Bar
Oil capacity: 0.492 L
Outside diameter: 113 mm
Effective pressure area: 32.8 cm²
Bore diameter: 75 mm
Principal axis diameter: 55 mm
Plunger diameter: 27 mm
Oil supply hole thread (Rc): 3/8"
Top cap height: 10 mm

Internal Reference: MHC20150
