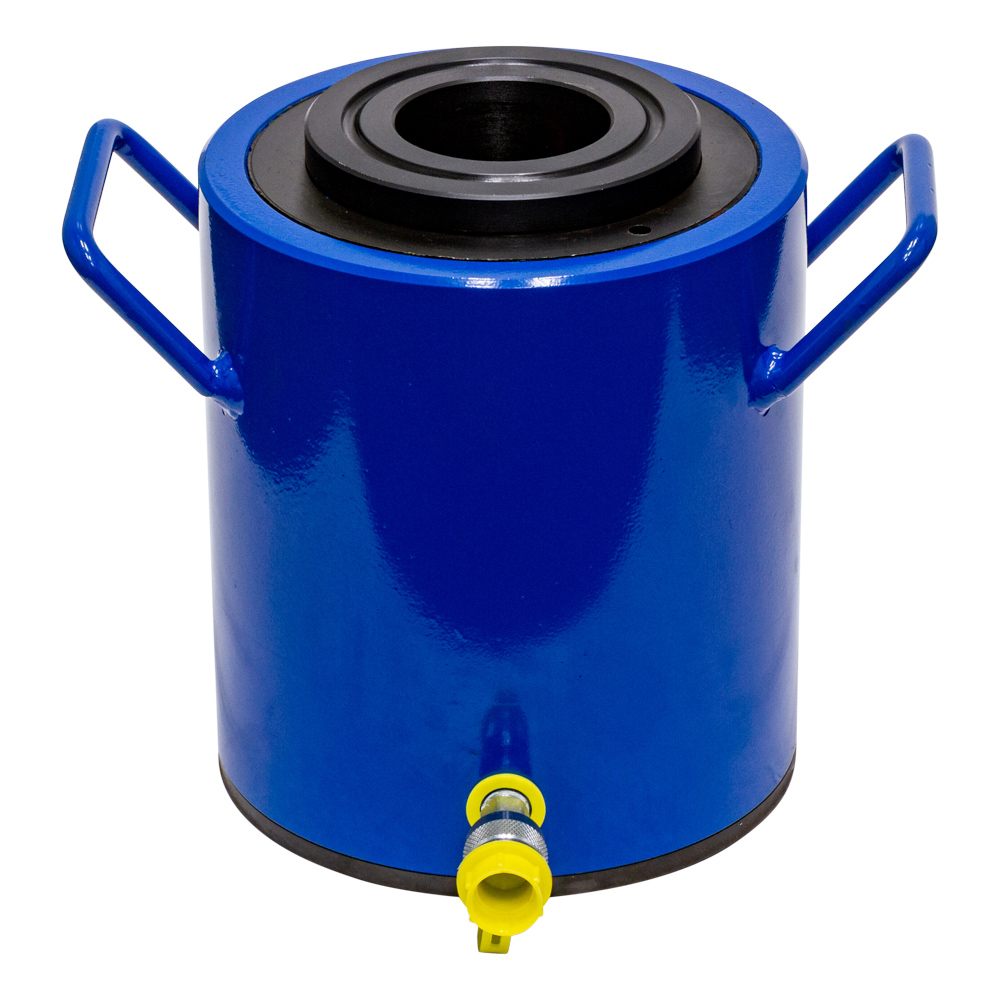

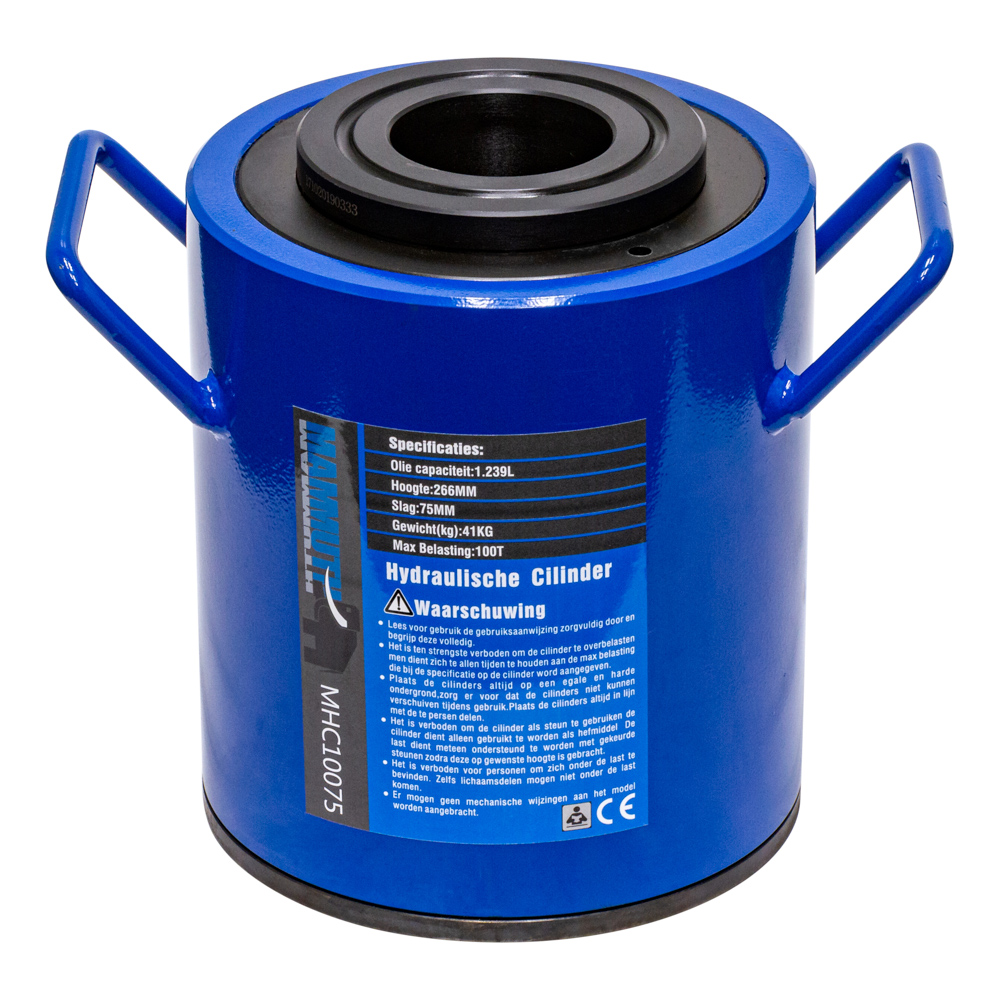

[MHC10075] Hollow cylinder 100 ton stroke 75mm

€ 847.00 € 847.00

  • Capacity
  • Stroke
  • Pressure max.
  • Oil capacity
  • Outside diameter
  • Effective pressure area
  • Bore diameter
  • Principal axis diameter
  • Plunger diameter
  • Oil supply hole thread (Rc)
  • Top cap height
  • Packaging
Add to cart
Add to wishlist
Contact Us
Capacity: 100 Ton
Stroke: 75 mm
Pressure max.: 700 Bar
Oil capacity: 1.259 L
Outside diameter: 224 mm
Effective pressure area: 167.8 cm²
Bore diameter: 180 mm
Principal axis diameter: 145 mm
Plunger diameter: 79 mm
Oil supply hole thread (Rc): 3/8"
Top cap height: 15 mm

Internal Reference: MHC10075
