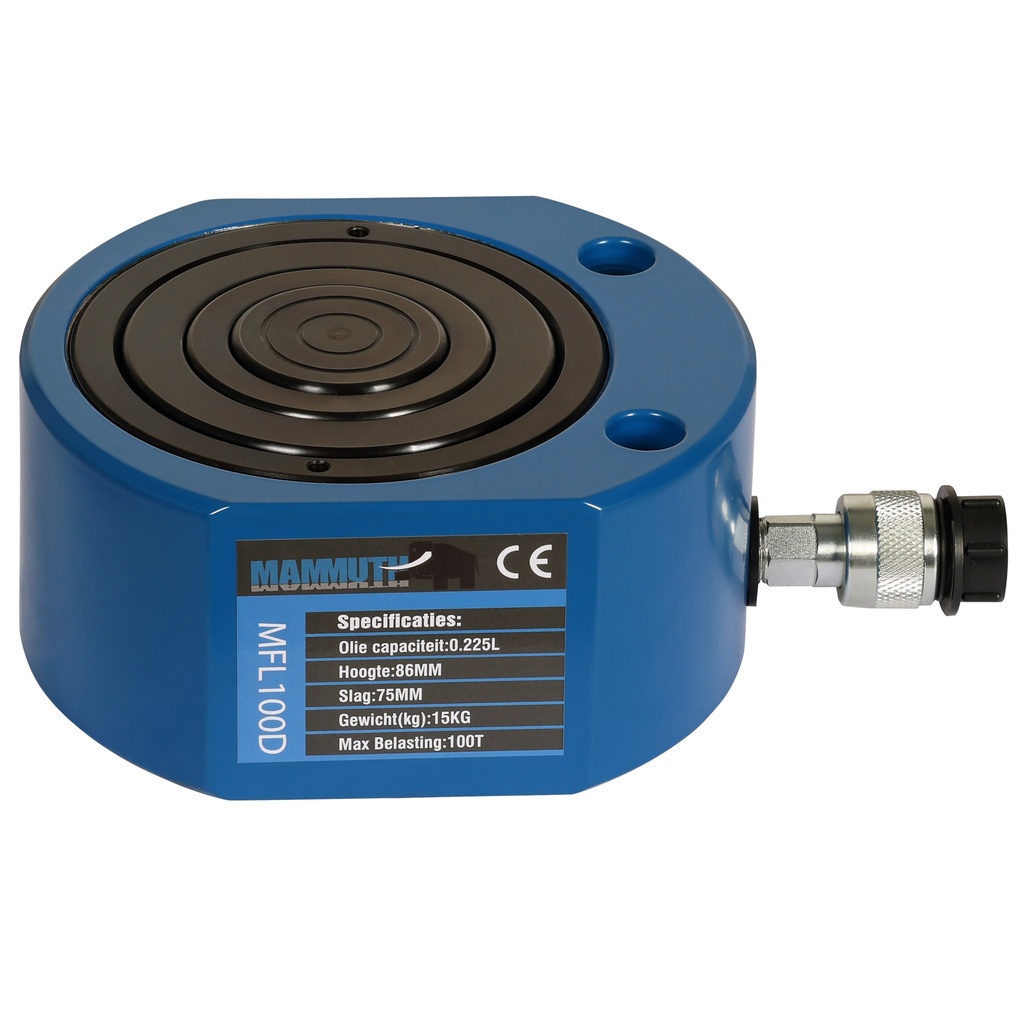

Flat cylinder double 100 ton stroke 75mm

[MFL100D] Flat cylinder double 100 ton stroke 75mm

€ 453.75 € 453.75

  • Capacity
  • Pressure max.
  • Stroke
  • Effective pressure area
  • Oil capacity
  • Cylinder height
  • Outside diameter
  • Bore diameter
  • Plunger diameter
Add to cart
Add to wishlist
Contact Us
Capacity: 100 ton
Pressure max.: 700 Bar
Stroke: 75 mm
Effective pressure area: 95cm²
Oil capacity: 0.225 L
Cylinder height: 86 mm
Outside diameter: 185 x 160 mm
Bore diameter: 130 mm
Plunger diameter: 110 mm

Internal Reference: MFL100D
