Material:
Steel
|
|
Lifting capacity:
30 ton
|
|

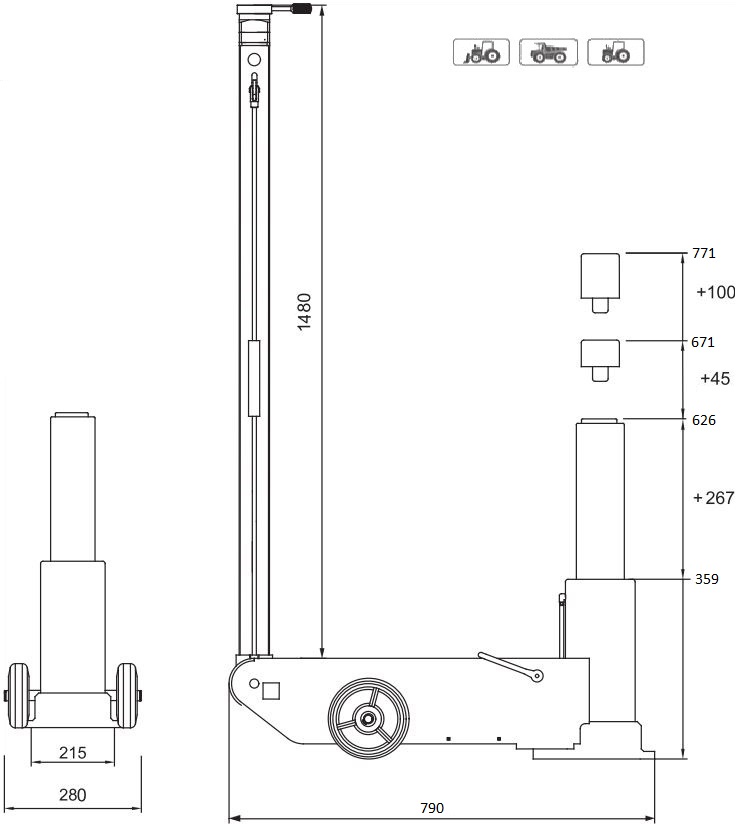

Lifting height min.:
360 mm
|
|
Lifting height max.:
771 mm
|
|
Platform dimensions:
ø84 mm
|
|
Handle length:
1370 mm
|
|
Wheel material:
Rubber/steel
|
|
Wheel diameter:
ø208 mm
|
|
Working air pressure:
9 - 12 bar
|
|
Air consumption:
300 L/min
|
|
Air connection:
1/4" BSP
|
|
Oil capacity:
3.4 L
|
|
Oil type:
OHCH15V
|
