Max. power:
8 kW
|
|
Rated output (230V):
6.0 kW
|
|
Max. output (230V):
6.5 kW
|
|
Rated output (400V):
7.5 kW
|
|
Max. output (400V):
8kW
|
|
Output voltage:
230V / 400V
|
|
Frequency:
50 Hz
|
|

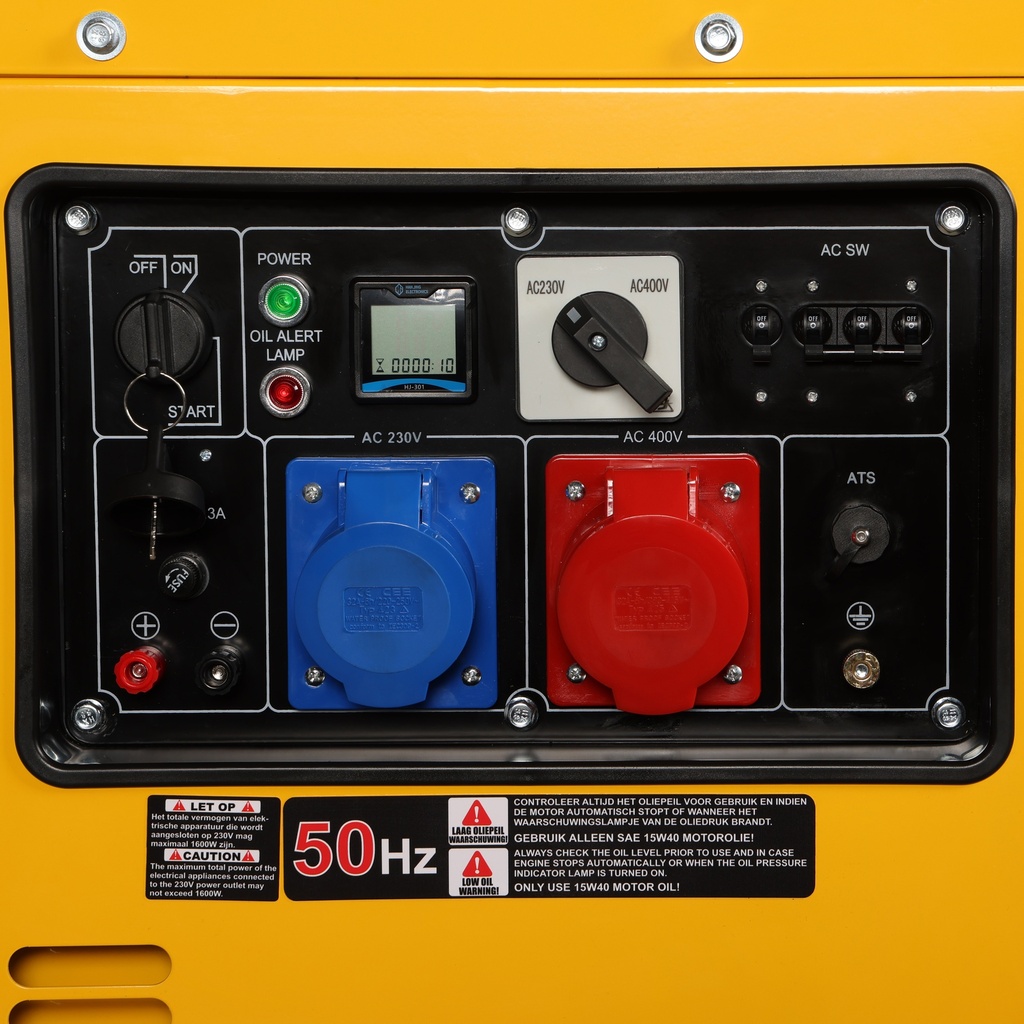

AC Output:
230V / 32A (3-pin)
,
400V / 32A(5-pin)
|
|
DC Output:
12V / 8.3A
|
|
AVR:
Yes
|
|

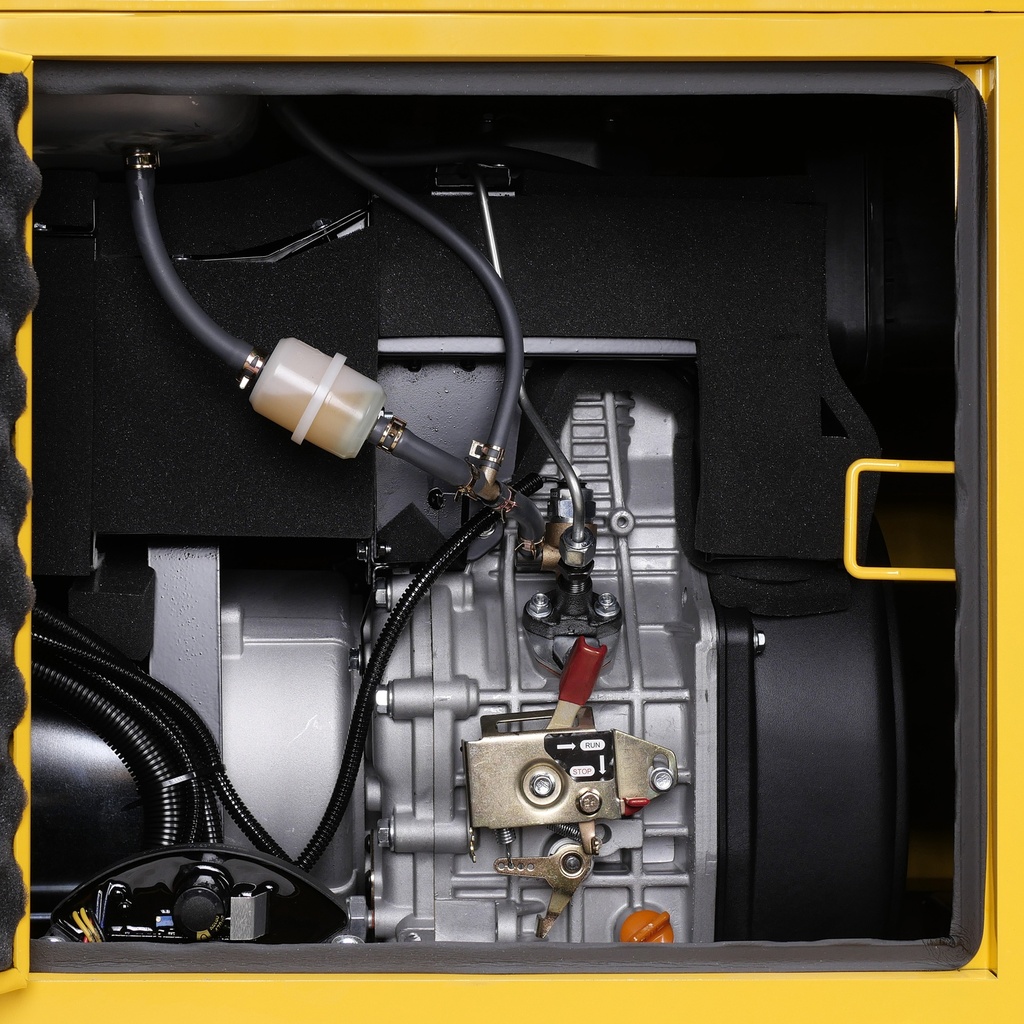

Engine model:
HR198FA
|
|
Engine type:
4 stroke, single cylinder
|
|
Motor speed:
3000 rpm
|
|
Cylinder number:
1
|
|
Cylinder capacity:
633cc
|
|
Cooling system:
air-cooled
|
|
Starting system:
Electric
|
|
Fuel type:
Diesel
|
|
Fuel tank capacity:
30L
|
|
Fuel consumption at 50% load:
1.7 L/h
|
|
Fuel consumption at 100% load:
2.8 L/h
|
|
Oil type:
O15W40
|
|
Oil capacity:
1.85 L
|
|
Noise level:
85 dB
|
|
Isonorm:
9001
|
